DYNAMIC DEEP WAVES FOR YOUR BACK

FDA Cleared Class II Medical Device & European (CE) Approved Medical Device

The patented BackUP! System was specially developed for the treatment of back pain. Back problems are a big issue. Almost 80% of adults suffer from back pain at least once in their lives. Athletes and people who keep fit can also be affected by the “widespread disease of back pain”.

“4 in 1” concept against back problems

The BackUP! System combines 4 proven therapy components:

Pain therapy (TENS impulses)
Muscle therapy (EMS impulses)
Dynamic deep tissue massage heat therapy

The BackUP! The system works with medium-frequency impulses that are delivered to the back via a 12-channel stimulation mat (24 electrodes). The mat is ergonomically shaped and can be heated up to 104°F (40 °C). Depending on the treatment focus, you can treat the entire back or the sub-areas of the cervical, thoracic and lumbar spine in a targeted manner.

The dynamic deep waves are perceived by the users as a tapping, kneading or stroking massage – in this way intensive muscle stimulation is combined with a pleasant massage.

Automatic mode for easier back treatment:

The BackUP! In the “Automatic program selection according to indications” mode, the system selects a therapy program tailored to the user’s symptoms. All you have to do is enter anamnesis data such as the severity, localization and course of the pain or the condition of the muscles and the desired focus of therapy. The program of the ongoing therapy is adjusted at each new session.

In the “Manual program selection” mode, you can of course select programs for pain therapy, muscle stimulation or dynamic deep tissue massage as before. It is also very easy to create your own programs – so-called user programs.

Perfect Personalization:

The BackUP! System makes it easy for you to personalize down to the smallest detail, if you wish. In addition to setting the mat size, you can perform a calibration. During this, the individual channels are adjusted so that the stimulation feels equally intense everywhere. This allows the application to be optimally tailored to your back.

Easy handling:

The BackUP! The system is controlled simply and intuitively via a clear touchscreen. If you wish, you can be accompanied by short help texts through the individual processes.

During the therapy session, the user can independently control the intensity of the impulses using a remote control.

Evaluation thanks to database and therapy history:

With a therapy in the “Automatic program selection according to indications” mode, you can evaluate individual therapy cycles in detail. It is also possible to evaluate the complete database according to different filter criteria. This allows you to keep track of the course and efficiency of the therapy for individual users or entire collectives.

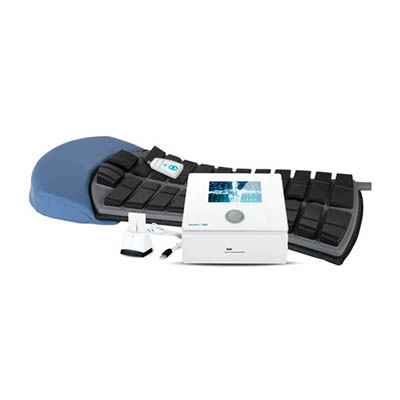

THE BACKUP! SYSTEM (MED. 120 MTRS VARIANT)

• Innovative therapy system for the treatment of back problems
• Dynamic deep waves for a multidimensional back treatment
• “4 in 1” therapy concept: pain therapy, muscle therapy, dynamic deep massage & heat therapy
• Gentle therapy with few side effects
• Well-tolerated, pleasant medium-frequency impulses are modulated according to therapeutic requirements
• Creation of patient profiles
• Anamnesis-based program selection in the “Automatic program selection according to indications” mode
  select specific therapy programs in the “Manual program selection” mode
• Calibration for optimal fit
• Patient history & database for clear evaluation of therapy
• Simple, self-explanatory operation via touchscreen
• Logical menu navigation
• Creation of own user programs possible
• Intensity control also by remote control
• Class II medical product according to Annex IX of the EC Directive 93/42/EEC on medical products

TECHNICAL SPECIFICATIONS
Channels: 12, permanently integrated in the stimulation mat
Classification (MPG): IIa
Operating voltage: 100-240 VAC / 50/60 Hz
Max. current consumption at 100 VAC / RL 500 Ω: approx. 1.9 A (incl. heating and stimulation)
Max 0.9 A (incl. heating and stimulation)
Max. power consumption: approx. 200 W
Mains fuse: T 3.15 AH 250 V
Max Ω

SCREEN
Size: 7 inch TFT
Resolution: 800 x 400 pixels
Number of colors: 262K
Features: Capacitive touch screen

FUNDAMENTAL FREQUENCY
Pulse shape: biphasic, symmetrical square
Frequency: 2 kHz – 6 kHz, deviation < 1%

LOW FREQUENCY MODULATION
Pulse shape: biphasic, symmetrical square
Frequency: 1 Hz – 100 Hz
Modulation depth: continuously adjustable from 0 – 100%

THRESHOLD MODULATION
Rise time, working time, fall time: 0.1 – 25.5 s each
Modulation depth: continuously adjustable from 0-100%

DIMENSIONS (H X W X D)
Basic device: 7.7″ x 11.2″ x 9.6″ (195 x 285 x 245 mm)
stimulation mat: 2.2″ x 16.5″ x 29.5″ (55 x 420 x 750 mm)

WEIGHT
Basic device: approx. 11 lbs (5 kg)
stimulation mat: approx. 19 lbs (8.5 kg)

WORKING CONDITIONS
Temperature range: 50°F(10°C) to 104°F (40°C)
Relative humidity: 30% to 70%

STORAGE CONDITIONS
Temperature range: 14°F(-10°C) to 131°F(55°C)
Relative humidity: 30% to 90%

SCOPE OF DELIVERY
1x StimaWELL 120MTRS 200199
1x StimaWELL remote control
1x StimaWELL admin card
1x Pressure Spray Bottle
1x Power Cord
1x Cable Holder
1x instruction manual
1x StimaWELL pillow
1x StimaWELL mat underlay
1x StimaWELL lordosis cushion
1x paper roll
